iCAST : 6-Column Cast Iron Radiator in Primer

mhs_ionic_bronze_815228898
mhs_ionic_bronze_815228898mhs_ionic_bronze_detail_388838676iCAST: 4/60 14secs in Gun metalmhs_ionic_polished_489476846mhs_ionic_polished_detail_467061991mhs_ionic_group_1573404731icast_20201024_1_791735194icast_20201024_2_1245239749icast_20201024_3_1912726789icast_20201024_4_1367565939icast_20201024_5_1341252144
£ 183.60 (£ 153.00 excl VAT) - starting price.
iCast 6 Column Radiator

Description

The iCAST: Cast Iron radiator oozes the perfect ambiance for period refurbishment projects and recreation schemes. Where genuine period style is sought the Victorian iCAST: Cast Iron radiator with its solid design, will outlast any other type of radiator. Victorian radiators are available in any colour and in satin, gloss or metallic finishes. They also have the option to be r fitted wall mounted.



Prices include: Primer finish, end leg sections, tapping bushes, stays and air vent.
Prices exclude: Painted finish, wall brackets and joining key.
Fuel type: C-central heating.
Availability:
Assembled to order, delivery 3-14 days.
Other sizes: Available on request. Please contact us.


NEW Finishes: Farrow & Ball, Little Green, RAL and other finishes available on request. Please contact us.



*Product does not include accessories and valves.

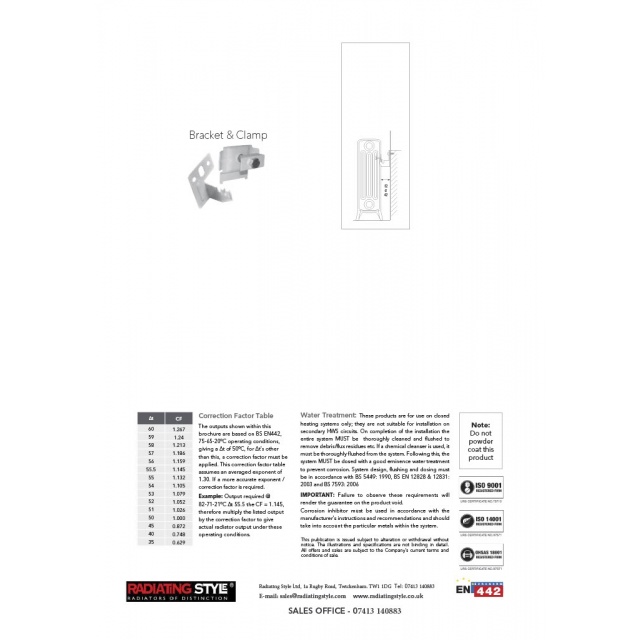

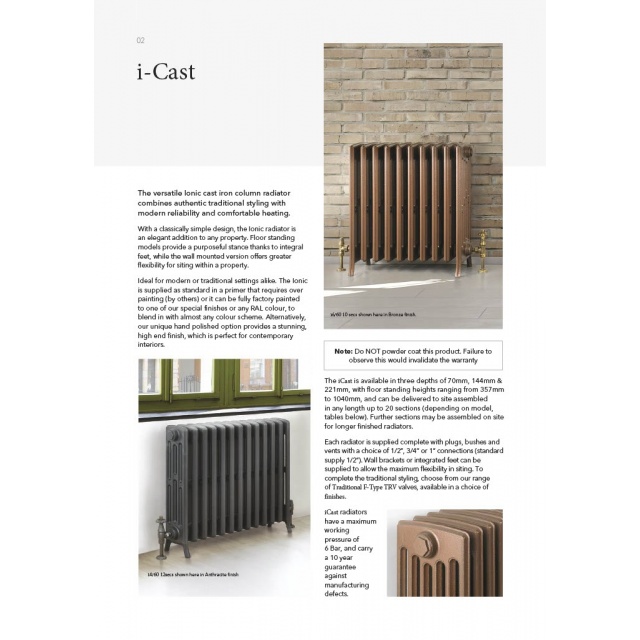

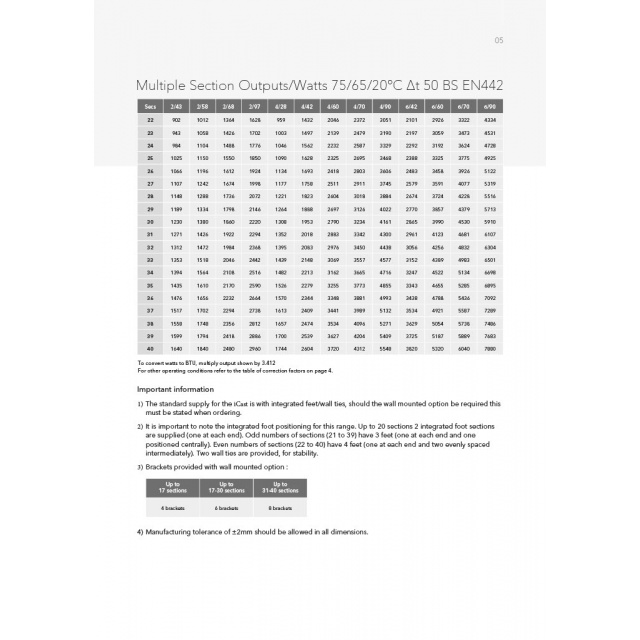

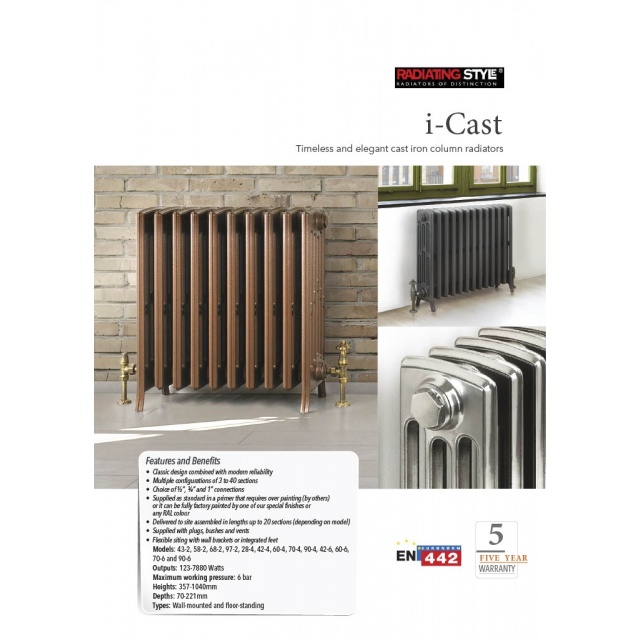

Looking for design inspiration? Why not take a look at our Online brochure for more pictures of the iCAST IRON radiator, from the chic Traditional radiator range.

See more details below.

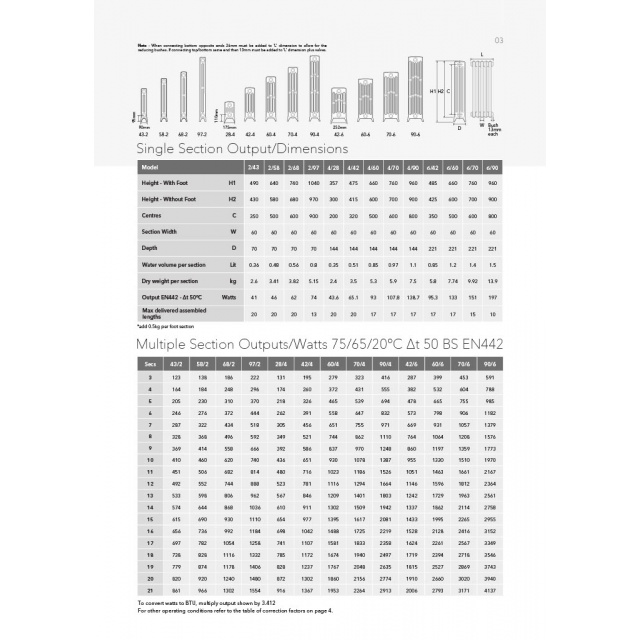

iCAST : Cast Iron Radiator in Primer

    No No       Output    Water Pipe Wall
MODEL Secs Stays Feet Height Width Depth d50w  Weight Cap Ctrs to Ctr
  (no) (Req'd) (Req'd) (mm) (mm) (mm) (w) (BTU's) (kg) (l) (mm) (mm)
i6/42 3 2 2 485 206 252 286 975 17 2.6 206* 126**
  4 2 2 485 266 252 381 1301 23 3.4 266* 126**
  5 2 2 485 326 252 477 1626 29 4.3 326* 126**
  6 2 2 485 386 252 572 1951 35 5.1 386* 126**
  7 2 2 485 446 252 667 2276 41 6.0 446* 126**
  8 2 2 485 506 252 762 2601 46 6.8 506* 126**
  9 2 2 485 566 252 858 2926 52 7.7 566* 126**
  10 2 2 485 626 252 953 3252 58 8.5 626* 126**
  11 2 2 485 686 252  1048  3577 64 9.4 686* 126**
  12 2 2 485 746 252 1144 3902 70 10.2 746* 126**
  13 2 2 485 806 252 1239 4227 75 11.1 806* 126**
  14 2 2 485 866 252 1334 4552 81 11.9 866* 126**
  15 2 2 485 926 252 1430 4877 87 12.8 926* 126**
  16 2 2 485 986 252 1525 5203 93 13.6 986* 126**
  17 2 2 485 1046 252 1620 5528 99 14.5 1046* 126**

i6/60 3 2 2 660 206 252 399 1361 23 3.6 206* 126**
  4 2 2 660 266 252 532 1815 31 4.8 266* 126**
  5 2 2 660 326 252 665 2269 39 6.0 326* 126**
  6 2 2 660 386 252 798 2723 47 7.2 386* 126**
  7 2 2 660 446 252 931 3177 54 8.4 446* 126**
  8 2 2 660 506 252 1064 3630 62 9.6 506* 126**
  9 2 2 660 566 252 1197 4084 70 10.8 566* 126**
  10 2 2 660 626 252 1330 4538 78 12.0 626* 126**
  11 2 2 660 686 252 1463 4992 85 13.2 686* 126**
  12 2 2 660 746 252 1596 5446 93 14.4 746* 126**
  13 2 2 660 806 252 1729 5899 101 15.6 806* 126**
  14 2 2 660 866 252 1862 6353 109 16.8 866* 126**
  15 2 2 660 926 252 1995 6807 116 18.0 926* 126**
  16 2 2 660 986 252 2128 7261 124 19.2 986* 126**
  17 2 2 660 1050 252 2261 7715 132 20.4 1046* 126**

i6/70 3 2 2 760 206 252 453 1546 30 4.2 206* 126**
  4 2 2 760 266 252 604 2061 40 5.6 266* 126**
  5 2 2 760 326 252 755 2576 50 7.0 326* 126**
  6 2 2 760 386 252 906 3091 59 8.4 386* 126**
  7 2 2 760 446 252 1057 3606 69 9.8 446* 126**
  8 2 2 760 506 252 1208 4122 79 11.2 506* 126**
  9 2 2 760 566 252 1359 4637 89 12.6 566* 126**
  10 2 2 760 626 252 1510 5152 99 14.0 626* 126**
  11 2 2 760 686 252 1661 5667 109 15.4 686* 126**
  12 2 2 760 746 252 1812 6183 119 16.8 746*  126**
  13 2 2 760 806 252 1963 6698 129 18.2 806* 126**
  14 2 2 760 866 252 2114 7213 139 19.6 866*  126**
  15 2 2 760 926 252 2265 7728 149 21.0 926* 126**

i6/90 3 2 2 960 206 252 591 2016 42 4.5 206* 126**
  4 2 2 960 266 252 788 2689 56 6.0 266* 126**
  5 2 2 960 326 252 985 3361 70 7.5 326* 126**
  6 2 2 960 386 252 1182 4033 83 9.0 386* 126**
  7 2 2 960 446 252 1379 4705 97 10.5 446* 126**
  8 2 2 960 506 252 1576 5377 111 12.0 506* 126**
  9 2 2 960 566 252 1773 6049 125 13.5 566* 126**
  10 2 2 960 626 252 1970 6722 139 15.0 626* 126**
 δ60w = δ50w x 1.268        Inc.              *ADD  **ADD
      Feet             VALVES STAYS
