ANASSA-H: Stainless Steel Radiator

600x1180-single-brushed_in_situ
600x1180-single-brushed_in_situ600x826-double-brushedcove_brushed_part_closecove_double_brushed_part1cove_stainless_horizontal_ncove_polished_stainless_partcove_stainless_horizontal_tech_image
£ 294.00 (£ 245.00 excl VAT) - starting price.
Height (mm)
Width (mm)
Depth
Finished In

Description

Space saving and elegant: these are just some of the attributes that a mono-column radiator brings to the mix.The epitome of the radiator chic, mono-column designs offer a simple solution for those who want to modernise their homes. Inspired by many of the world's hip hotels, why not introduce a bit of hotel chic to your own abode. Use them in the kitchen, dining room or living room; these designs can be hung vertically to maximise space where it’s needed.

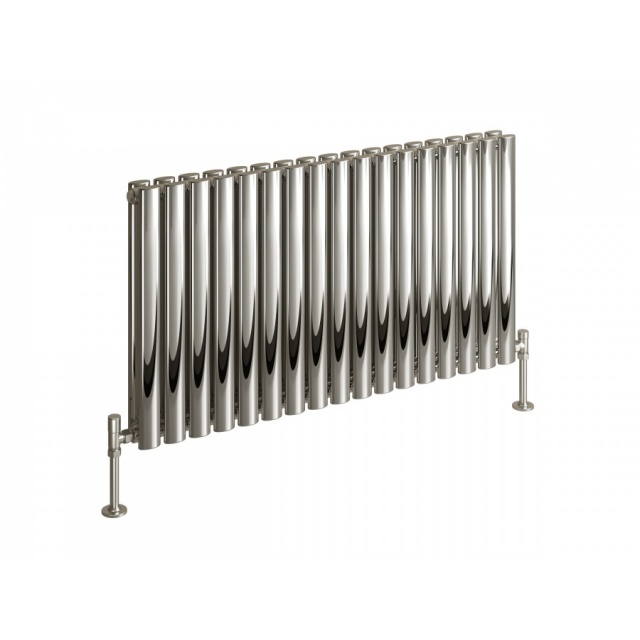

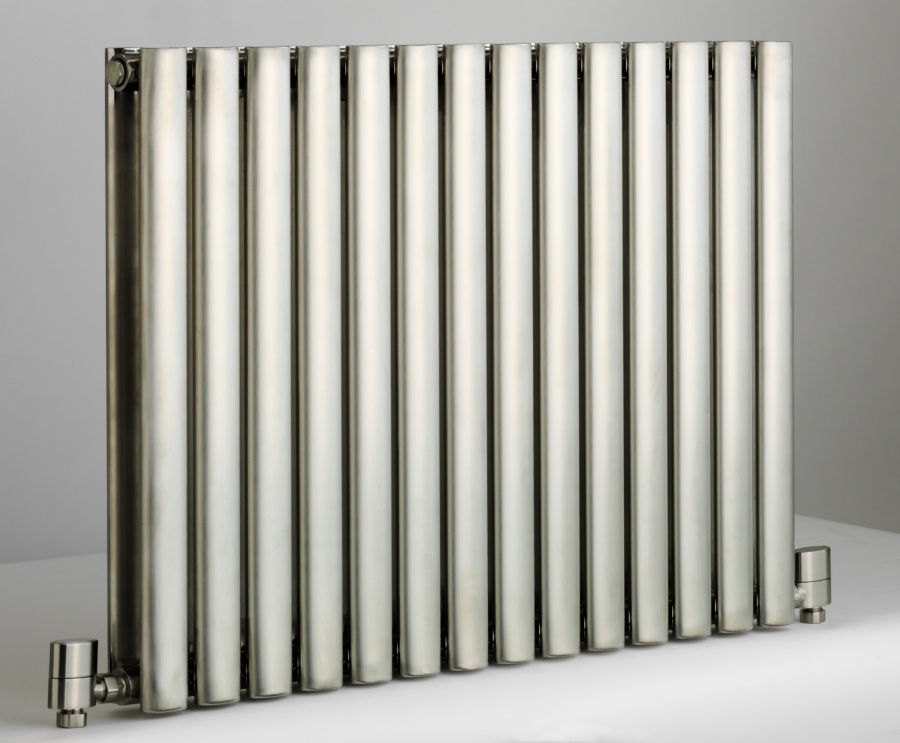

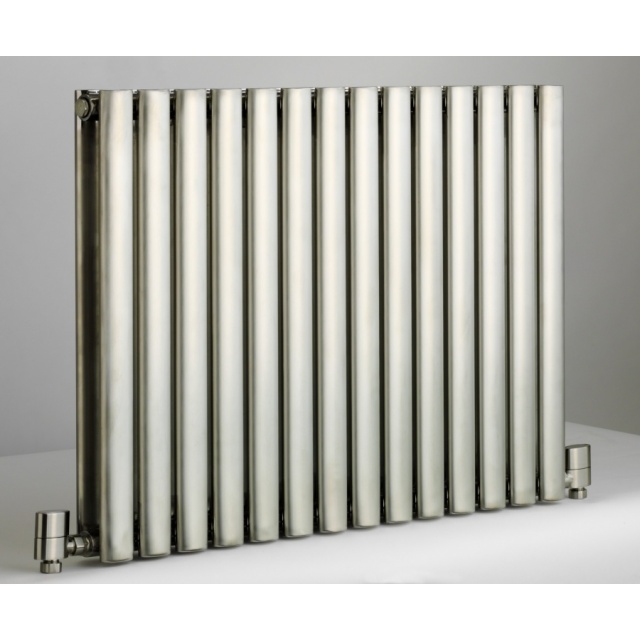

The Anassa-H-SS radiator is manufactured from "Elliptical" stainless steel tubes and is free from sharp edges and corners. Anassa-H-SS can be ordered with single or double tubes to achieve higher outputs.

Prices include: Brushed or polished stainless steel and wall brackets .
Fuel type: C-central heating.
Availability: Delivery 2-5 days.

*Product does not include accessories and valves.



ANASSA-H: Stainless Steel Radiator

Output Pipe Wall to
MODEL Tube Height Width Depth δ50w Weight Ctrs Ctr Fuel
(no) (mm) (mm) (mm) (w) (BTU's) (kg) (mm) (mm) (Type)
SINGLE
AN-V-SIN 600 7 600 413 105 300 1024 10 413* 65 C
  10 600 590 105 425 1450 12 590* 65 C
  14 600 826 105 595 2030 14 826* 65 C
  17 600 1003 105 725 2474 16 1003* 65 C
  20 600 1180 105 850 2900 18 1180* 65 C

DOUBLE
AN-V-DBL 600 14 600 413 105 475 1621 17 413* 65 C
  20 600 590 105 680 2320 19 590* 65 C
  28 600 826 105 960 3276 21 826* 65 C
  34 600 1003 105 1160 3958 24 1003* 65 C
  40 600 1180 105 1365 4657 27 1180* 65 C
δ60w = δ50w x 1.268             * Add
