iCAST : 4-Column Cast Iron Radiator in Primer

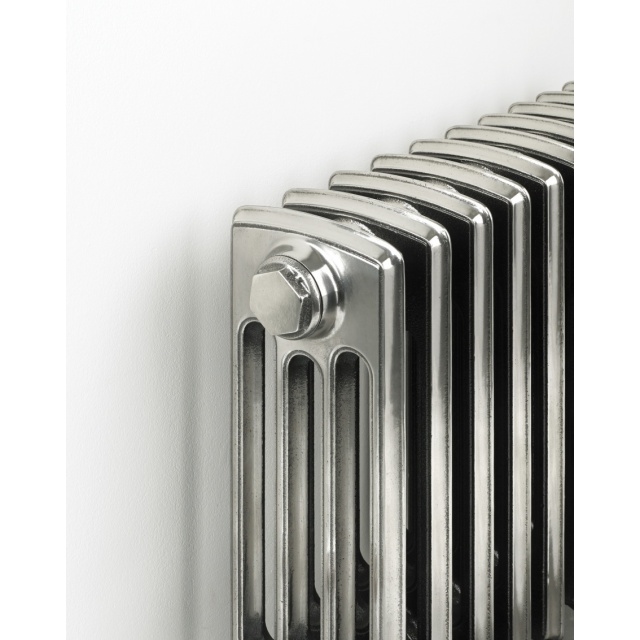

icast_polished_in_situ
icast_polished_in_situicast_polished_detailicast_radiatoriCAST: 4/60 14secs in Gun metalmhs_ionic_bronze_1497539542mhs_ionic_bronze_detail_1324674812mhs_ionic_group_919950349icast_20201024_1icast_20201024_2icast_20201024_3icast_20201024_4icast_20201024_5
£ 104.40 (£ 87.00 excl VAT) - starting price.
iCast 4 Column Radiator

Description

The iCAST: Cast Iron radiator oozes the perfect ambiance for period refurbishment projects and recreation schemes. Where genuine period style is sought the Victorian iCAST: Cast Iron radiator with its solid design, will outlast any other type of radiator. Victorian radiators are available in any colour and in satin, gloss or metallic finishes. They also have the option to be fitted wall mounted.



Prices include: Primer finish, end leg sections (if required), tapping bushes, stays and air vent.
Prices exclude: All finishes, wall brackets and joining key.
Fuel type: C-central heating.
Availability:
Assembled to order, delivery 3-14 days.
Other sizes: Available on request. Please contact us.


NEW Finishes: Farrow & Ball, Little Green, RAL and other finishes available on request. Please contact us.



*Product does not include accessories and valves.

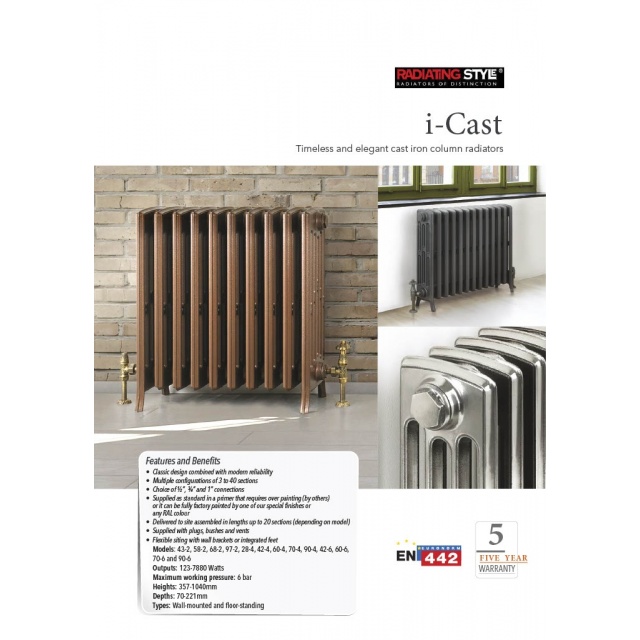

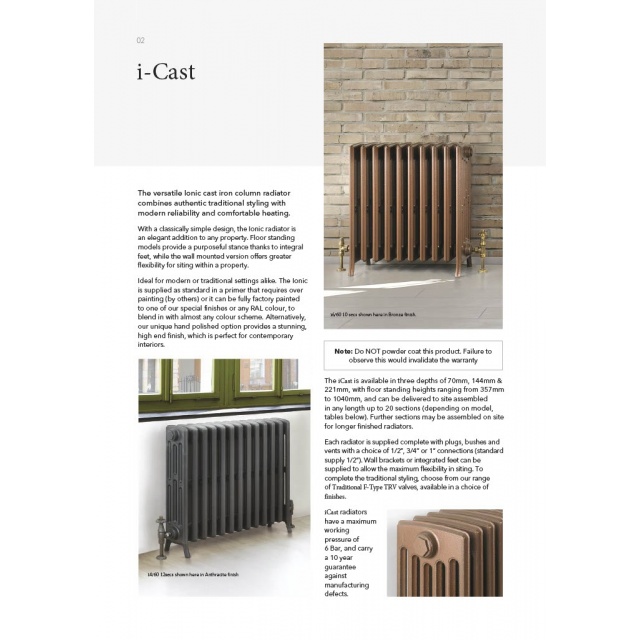

Looking for design inspiration? Why not take a look at our Online brochure for more pictures of the iCAST IRON radiator, from the chic Traditional radiator range.

See more details below.

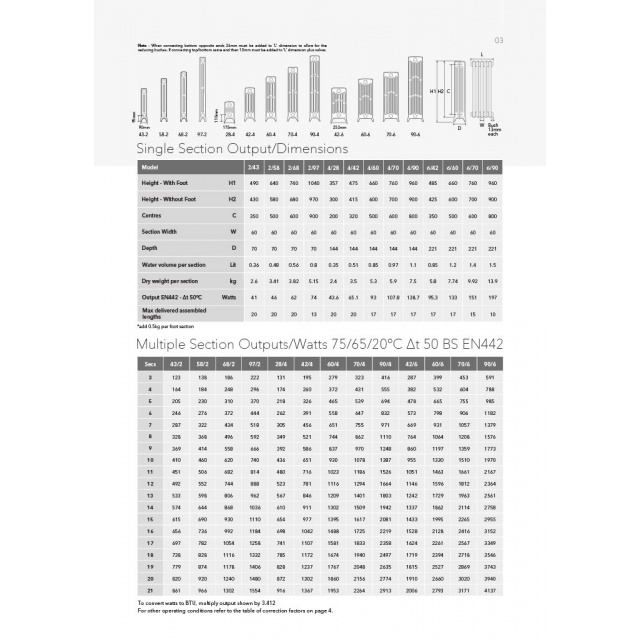

iCAST : Cast Iron Radiator in Primer

    No No       Output    Water Pipe Wall
MODEL Secs Stays Feet Height Width Depth d50w  Weight Cap Ctrs to Ctr
  (no) (Req'd) (Req'd) (mm) (mm) (mm) (w) (BTU's) (kg) (l) (mm) (mm)
i4/28 3 2 2 357 206 175 132 450 7 1.1 206*  87.5**
  4 2 2 357 266 175 176 601 10 1.4 266* 87.5**
  5 2 2 357 326 175 220 751 12 1.8 326* 87.5**
  6 2 2 357 386 175 264 901 14 2.1 386* 87.5**
  7 2 2 357 446 175 308 1051 17 2.5 446* 87.5**
  8 2 2 357 506 175 352 1201 19 2.8 506* 87.5**
  9 2 2 357 566 175 396 1351 22 3.2 566* 87.5**
  10 2 2 357 626 175 440 1501 24 3.5 626* 87.5**
  11 2 2 357 686 175 484 1651 26 3.9 686* 87.5**
  12 2 2 357 746 175 528 1802 29 4.2 746* 87.5**
  13 2 2 357 806 175 572 1952 31 4.6 810* 87.5**
  14 2 2 357 866 175 616 2102 34 4.9 866* 87.5**
  15 2 2 357 926 175 660 2252 36 5.3 926* 87.5**
  16 2 2 357 986 175 704 2402 38 5.6 986* 87.5**
  17 2 2 357 1046 175 748 2552 41 6.0 1046* 87.5**
  18 2 2 357 1106 175 792 2702  43 6.3 1106* 87.5**
  19 2 2 357 1166 175 836 2852 46 6.7 1166* 87.5**
  20 2 2 357 1226 175 924 3153 48 7.4 1226* 87.5**

i4/42 3 2 2 475 206 175 195 665 11 1.5 206* 87.5**
  4 2 2 475 266 175 260 887 14 2.0 266* 87.5**
  5 2 2 475 326 175 326 1111 18 2.6 326* 87.5**
  6 2 2 475 386 175 390 1331 21 3.1 386* 87.5**
  7 2 2 475 446 175 455 1552 25 3.6 446* 87.5**
  8 2 2 475 506 175 520 1774 28 4.1 506* 87.5**
  9 2 2 475 566 175 585 1996 32 4.6 566* 87.5**
  10 2 2 475 626 175 650 2218 35 5.1 626* 87.5**
  11 2 2 475 686 175 715 2440 39 5.6 686* 87.5**
  12 2 2 475 746 175 781 2665 42 6.1 746* 87.5**
  13 2 2 475 806 175 845 2883 46 6.6 806* 87.5**
  14 2 2 475 866 175 911 3110 49 7.1 866* 87.5**
  15 2 2 475 926 175 975 3327 53 7.7 926* 87.5**
  16 2 2 475 986 175 1042 3554 56 8.2 986* 87.5**
  17 2 2 475 1046 175 1105 3770 60 8.7 1046* 87.5**
  18 2 2 475 1106 175 1172 3998 63 9.2 1106* 87.5**
  19 2 2 475 1166 175 1235 4214 67 9.7 1166* 87.5**
  20 2 2 475 1226 175 1365 4657 70 10.7 1226* 87.5**

i4/60 3 2 2 660 206 175 279 952 16 2.6 206* 87.5**
  4 2 2 660 266 175 372 1269 21 3.4 266* 87.5**
  5 2 2 660 326 175 465 1587 27 4.3 326* 87.5**
  6 2 2 660 386 175 558 1904 32 5.1 386* 87.5**
  7 2 2 660 446 175 651 2221 37 6.0 446* 87.5**
  8 2 2 660 506 175 744 2539 42 6.8 506* 87.5**
  9 2 2 660 566 175 837 2856 48 7.7 566* 87.5**
  10 2 2 660 626 175 930 3173 53 8.5 626* 87.5**
  11 2 2 660 686 175 1023 3490 58 9.4 686* 87.5**
  12 2 2 660 746 175 1116 3808 64 10.2 746* 87.5**
  13 2 2 660 806 175 1209 4125 69 11.1 806* 87.5**
  14 2 2 660 866 175 1302 4442 80 11.9 866* 87.5**
  15 2 2 660 926 175 1395 4760 85 12.8 926* 87.5**
  16 2 2 660 986 175 1488 5077 90 13.6 986* 87.5**
  17 2 2 660 1050 175 1581 5394 95 14.5 1050* 87.5**

i4/70 3 2 2 760 206 175 324 1105 20 2.9 206* 87.5**
  4 2 2 760 266 175 432 1474 27 3.9 266* 87.5**
  5 2 2 760 326 175 540 1842 34 4.9 326* 87.5**
  6 2 2 760 386 175 648 2211 40 5.8 386* 87.5**
  7 2 2 760 446 175 756 2579 47 6.8 446* 87.5**
  8 2 2 760 506 175 864 2948 54 7.8 506* 87.5**
  9 2 2 760 566 175 972 3316 59 8.7 566* 87.5**
  10 2 2 760 626 175 1080 3685 67 9.7 626* 87.5**
  11 2 2 760 686 175 1188 4053 65 10.7 686* 87.5**
  12 2 2 760 746 175 1294 4414 71 11.6 746*  87.5**
  13 2 2 760 806 175 1404 4790 77 12.6 806* 87.5**
  14 2 2 760 866 175 1509 5149 83 13.6 866*  87.5**
  15 2 2 760 926 175 1620 5527 89 14.6 926* 87.5**
  16 2 2 760 986 175 1725 5885 94 15.5 986*  87.5**
  17 2 2 760 1046 175 1836 6264 100 16.5 1046* 87.5**

i4/90 3 2 2 960 206 175 417 1423 24 3.3 206* 87.5**
  4 2 2 960 266 175 556 1897 30 4.4 266* 87.5**
  5 2 2 960 326 175 695 2371 38 5.5 326* 87.5**
  6 2 2 960 386 175 834 2846 45 6.6 386* 87.5**
  7 2 2 960 446 175 973 3320 53 7.7 446* 87.5**
  8 2 2 960 506 175 1112 3794 60 8.8 506* 87.5**
  9 2 2 960 566 175 1251 4268 68 9.9 566* 87.5**
  10 2 2 960 626 175 1390 4743 75 11.0 626* 87.5**
  11 2 2 960 686 175 1529 5217 83 12.1 686* 87.5**
  12 2 2 960 746   175  1664 5679 90 13.2 746*  87.5**
  13 2 2 960 806 175 1807 6165 98 14.3 806* 87.5**
  14 2 2 960 886   175  1942 6625 105 15.4 886*  87.5**
  15 2 2 960 926 175 2085 7114 113 16.5 926* 87.5**
  16 2 2 960 986   175  2219 7572 120 17.6 986*  87.5**
  17 2 2 960 1046 175 2363 8063 128 18.7 1046* 87.5**
 δ60w = δ50w x 1.268                     *ADD  **ADD
                       VALVES   STAYS
